WLAN power socket, switchable via network / IP with performance measurement (positive/negative)

• Allows switching of connected consumers (up to 16A resistive load) via integrated webserver - new release 3.2
• 10/100 Mbit RJ45 network interface
• IEEE802.11b/g/n Wireless LAN with 300 Mbps
• With integrated power plug socket
• for 200 - 250 V AC
• Voltage and consumption measurement
• Time controlled, programmatically or manually switching

The ALL3075v4 network power socket allows switching of connected devices via network or IP. The ALLNET device acts like a adapter between power outlet and electric consumer. Connected to a computer network, the ALL3075v4 is accessable via its own IP address. Both, con guration and operation
can be done with any network based OS. No additional software is needed, the only requirement is a web browser.

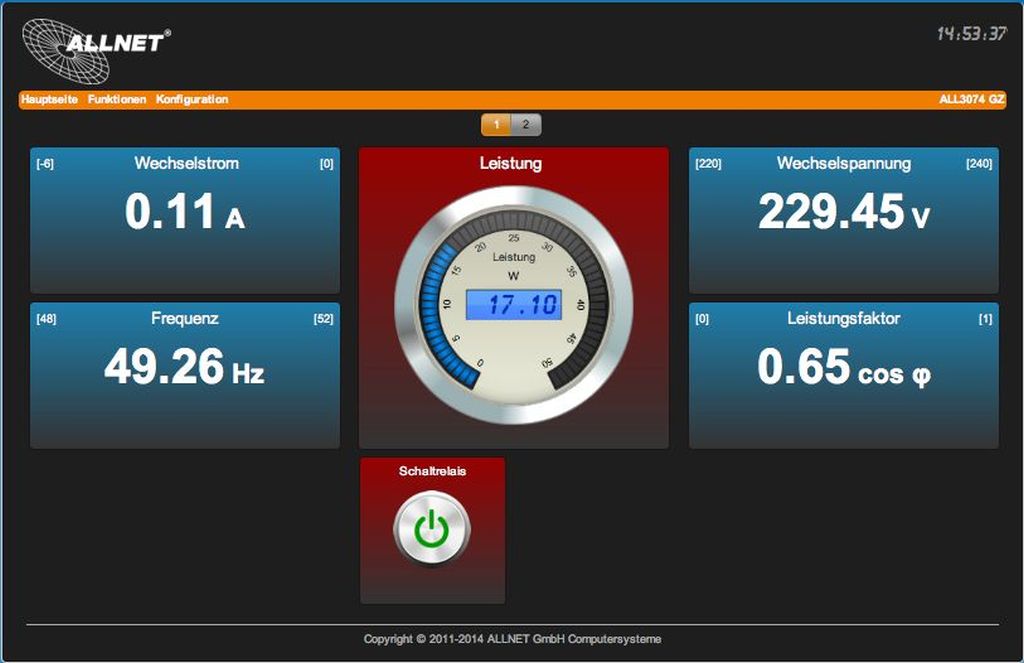

The ALL3075v4 measures and stores the energy consumption of any connected device. The switching operations can be done manually, based on time, consumption or by individual programming. Several devices of the The ALL3075v4 can also combined to a grid. The network power socket works
perfect with various ALLNET automation solutions, like the ALL369x Powermeter or ALL3418v2, 3419, ALL3500, ALL3505, ALL4500 and ALL5000 central units.

The ALLNET ALL3075v4 adapter is based on the brandnew Release 3.2 user interface. In addition to several visible innovations, Release 3.2 offers for the rst time even the possibility to integrate multiple ALLNET sensors or actuators quickly and easily via JSON. This allows central administration of
multi-site based measurement data. This supports administrators with a perfect clarity and facilitates their work dramatically. In additon to the RJ45 network interface the ALL3075v4 offers also a Wireless-N interface with a maximum transfer-speed of 300 MBit. This allows easy integration in wireless networks and seamless usage and con guration from every smart phone or tablet. The ALL3075v4 can be con gured for client or access point usage.

The „server control“ function allows easy control and even reset of connected PC or Server systems. Server control sends automated ping requests to the connected server. If the PC or Server system does not answer in a pre-con gured time, the power outlet will quit the transfer and reset the
connected device to restore functionality.

Technical Details:
