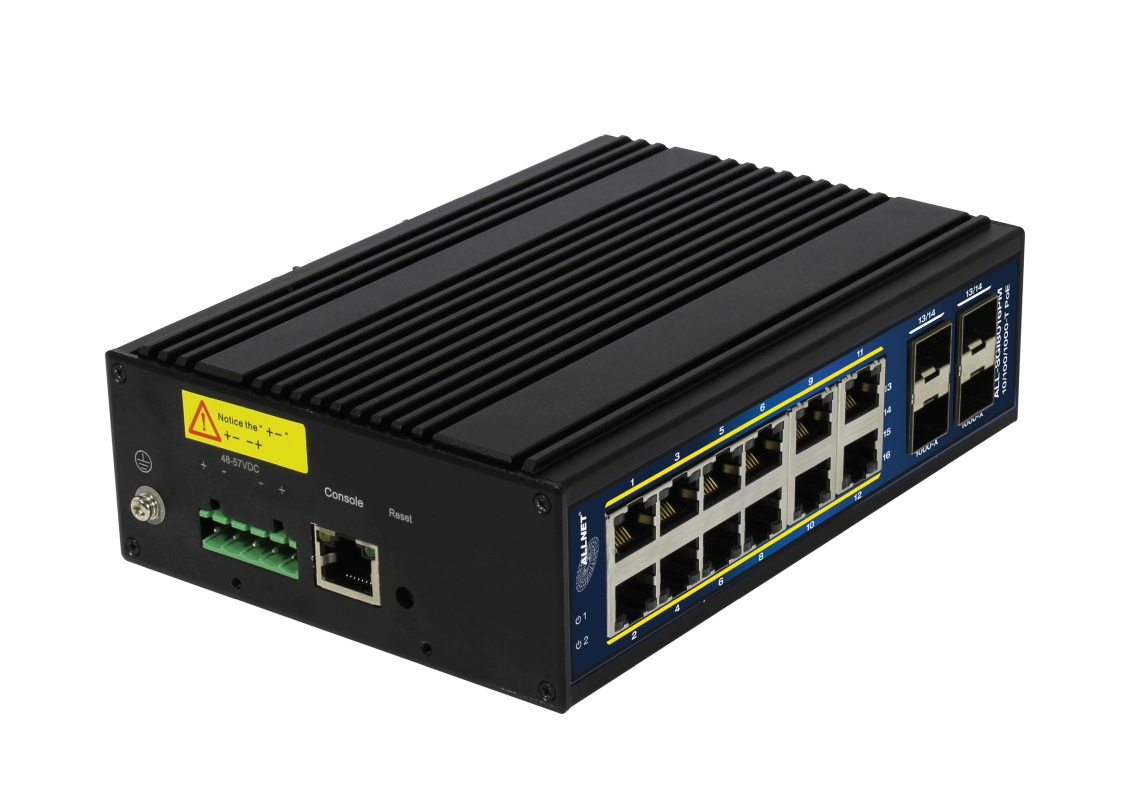

ALLNET Switch ALL-SGI8016PM managed L2+/L3 industriel 12 Port Gigabit / 12x PoE / 4x SFP / sans ventilateur / DIN / IP40

Points forts :

        Avec 12*10/100/1000M de ports PoE en liaison descendante, 4*1000M de ports SFP ;
        Supporte une puissance PoE allant jusqu'à 30W chacun ;
        Prise en charge de la gestion L3, telle que OSPF, RIP, QoS, VLAN, MSTP, Multi-broadcast, gestion des ports et gestion PoE ;
        Protection contre les surtensions de 6KV, contact de 8KV / protection ESD aérienne de 15KV ;
        Supporte une température de fonctionnement de -40°C ~+75°C.

ALLNET ALL-SGI8016PM est un commutateur PoE L3 industriel professionnel mais abordable, avec 16 ports Gigabit, supportant jusqu'à 12*10/100/1000M ports PoE descendants et 4* 1000M ports SFP. Les 12*10/100/1000M ports prennent en charge le PoE+ et sont conformes à la norme IEEE 802.3af/at, la puissance PoE par port pouvant atteindre 30W.

Il prend en charge la gestion L3 telle que OSPF, RIP, QoS, VLAN, MSTP, multidiffusion, gestion des ports et gestion PoE, et prend en charge la protection contre les surtensions 6KV, la protection ESD 8KV contact/15KV air. L'installation murale, de bureau et sur rail din est fiable et durable, et peut être utilisée pour la vidéosurveillance sur réseau de sécurité, l'ingénierie réseau et d'autres occasions.

Technical Details:

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	2*DC 48~57V, redundancy power supply
Consumption	Self consumption<20W
Downlink ports	10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
Uplink ports	Ports 13~16 1000M SFP slots
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	32Gbps
Though put	23.8Mpps
Buffer	4M
MAC address table	16K
Indicator	Power: 2 *red ; Uplink 13~16: green LEDs indicate Link/Act Downlink 1~12: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2
Working temperature	-40°C~+75°C
Storage temperature	-40°C~+85°C
Humidity	0~95%(No condensation)
Dimension(L×W×H)	165 mm×114 mm×46mm
Material	Metal
Colour	Black
Net-weight	530g
L2 Features Port configuration	Auto-negotiation
Flow Control
Port Mirror
L2 Features Link Aggregation	Traffic statistics
Static link aggregation
LACP
Algorithm based on Source/Destination MAC
Algorithm based on Source/Destination IP
8 groups
8 ports per group
L2 Features MAC Table	Aging Time
Static MAC address
Dynamic MAC address management
L2 Features VLAN	4K Active VLANs
4K VID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Management VLAN
Voice VLAN
Q-in-Q
Private VLAN
GARP/GVRP
L2 Features ACL	64 ACLs
L2, L3 e L4
Time-based ACL
L2 Features Spanning tree	802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard
BPDU Filter
L2 Features Multicast	256 groups
IGMP v1/v2/v3
Fast Leave
Multicast VLAN
Static Multicast
Multicast Filter
IGMP Statistics
MLD Snooping
L2 Features PoE management	Support total power consumption control
Support single port PoE ON/OFF
Support port output priority
L2 Features QOS	4 priority queues
CoS port-based
CoS 802.1p-based
CoS DSCP-based
Scheduling algorithms SP, WRR, SP+WRR
Storm Control (Broadcast, Multicast, Unknown Unicast)
Bandwidth control per port
Security Features	Port Security
MAC address filter
ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries
ARP Protection
DoS (Denial of Service)
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type
802.1x Autentication (port-based e MAC-based)
TACACS/TACACS+ Autentication
RADIUS Autentication
DHCP Filter
Guest VLAN
SSLv2/SSLv3/TLSv1
SSHv1/SSHv2
Restriction of WEB access based on: IP Address, And. MAC and Port
Port Isolation
Local User Name Password Authentication (2 levels)
Loopback detection
Management	SNMP v1/v2c/v3
RMON 4 grupos
WEB (HTTP/HTTPS)
CLI (Telnet, Console, SSHv1/v2)
Firmware upgrade via console/web/TFTP
Configuration Backup/Reload
All possible configurations in the CLI must exist in the WEB interface
LLDP
Other Features	DHCP Relay
DHCP Client
DHCP Snooping
DHCP Option 82
SNTP Client
BOOTP Client
Maintenance	Ping and Tracert
System log (Local and Remote)
Memory and CPU Monitoring
L3 Features	Static Routing
OSPFv2
RIPv1/v2
DHCP Server
IPV6	IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Ping6
Tracert6
Telnet(v6)
Http/Https
IPv6 TFTP
Static Routing
Interface IPV6
