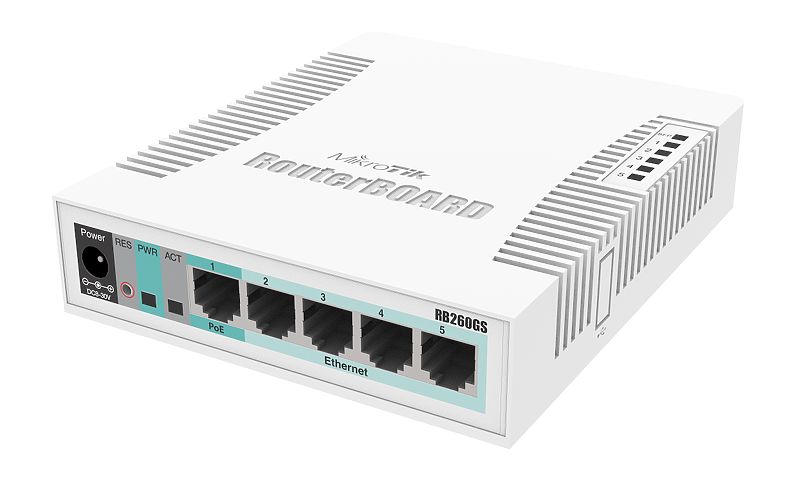

RouterBOARD 260GS 5-port Gigabit smart switch with SFP cage, SwOS, plastic case, PSU

RB260GS

The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.

SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.

Product specifications

Details

Product code RB260GS

SFP DDMI Yes

CPU core count 0

Size of RAM 0 KB

Architecture RISC

10/100 Ethernet ports 0

10/100/1000 Ethernet ports 5

MiniPCI slots 0

MiniPCI-e slots 0

Wireless chip model None

Number of USB ports 0

Memory Cards 0

Power Jack 1

PoE in Yes

Voltage Monitor No

CPU temperature monitor No

PCB temperature monitor No

Dimensions 113x139x28mm

Operating System MikroTik SwOS

Operating temperature range -25? to +65?

Antenna gain DBI No

Current Monitor No

CPU None

Max Power consumption 6W

SFP ports 1

SFP+ ports 0

Number of chains 0

Serial port None

Suggested price $39.95
