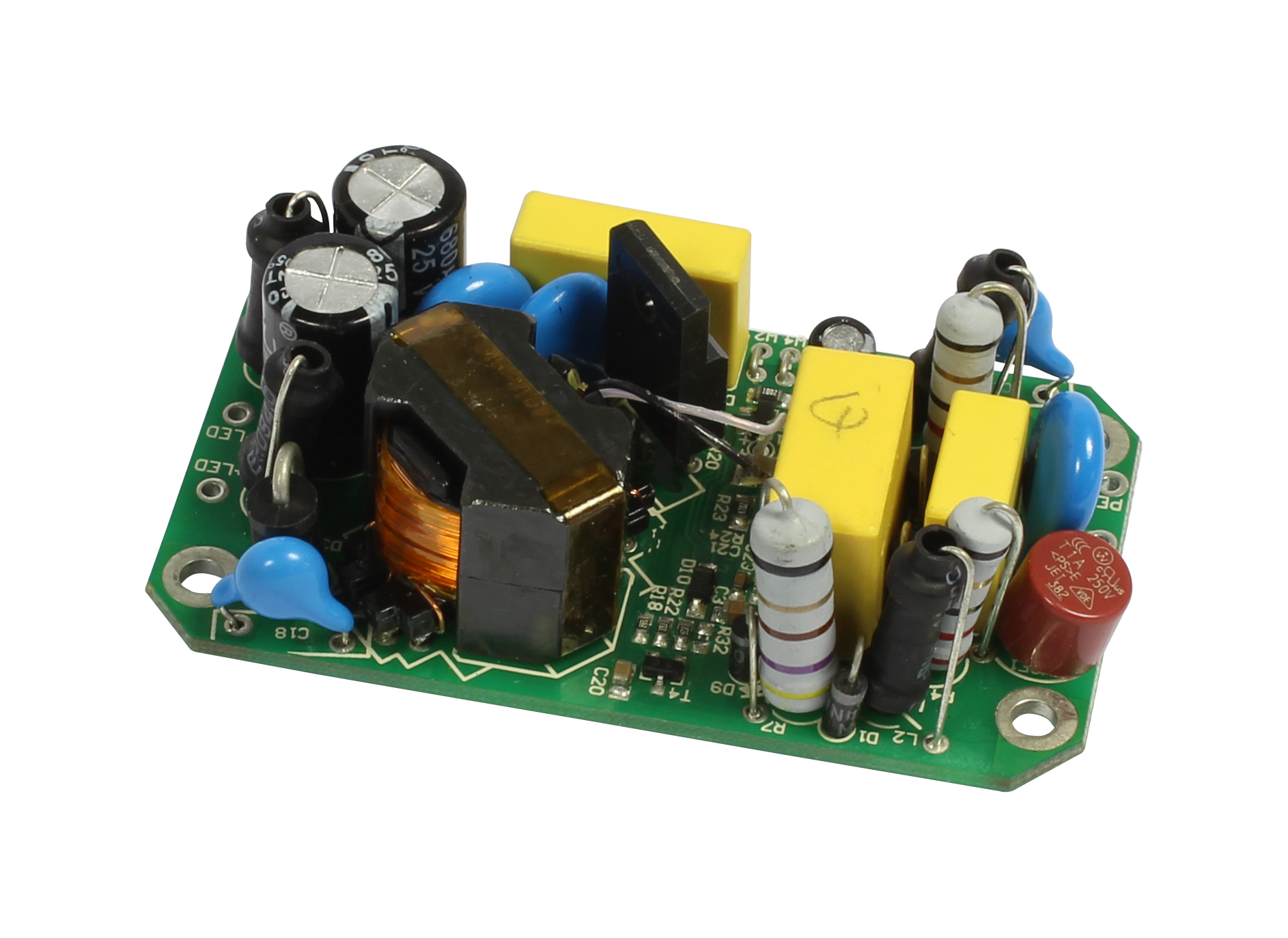

Das Netzteil ALL1082 ist ein primär dimmbares,
leistungsgeregeltes Netzteil

Anwendungsbereich: 7-21W für z.B. 10W, 20W Baustrahler

- Input voltage (normal mode): 207 to 253Vac (47 to 63Hz)
- Accepted input voltage: 180 to 270Vac (current maybe vary, refer to diagrams)
- Primary dimmable via phase-cut dimmers (leading/trailing edge dimmers)
- Inrush current: <300mA
- Output power range: 6.4 to 20W (±10%)
- Constant power behaviour (CP)
- Output voltage range: 8 to 20V (refer to diagrams)
- Output OVP shutdown: 21 to 26V
- Startup time: typical 250ms
- Ramp-up time to full light: typical 500ms
- Emergency light function: Input >30Vdc, >24Vac (at 10% nominal power)
- Temperature range: -25 to 65°C
- Overall efficiency: 78 to 86%
- High power factor: 82 to 98% (refer to diagrams)
- Temperature derating: Power reducing at 60°C PCB temperature
- Thermal shutdown: at 80°C PCB temperature to <20% of nominal power

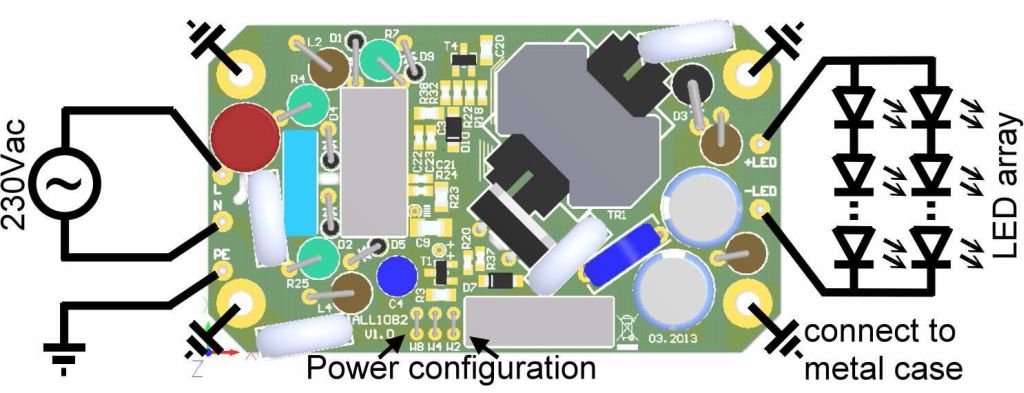

- Outputs connectable in series/parallel to reach higher power/voltage
