RAK Wireless&nbspWisGate Developer D4H Gateway LoRa 868MHz Version

Overview

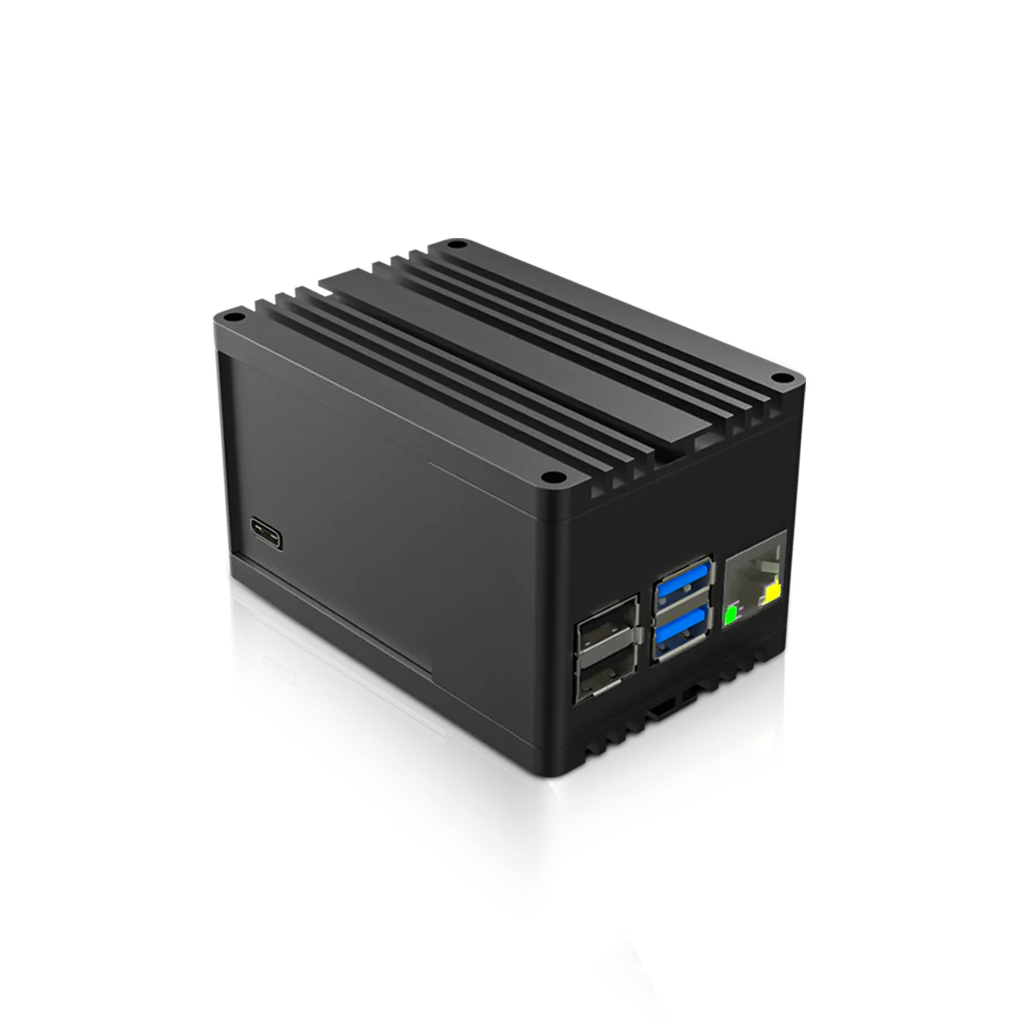

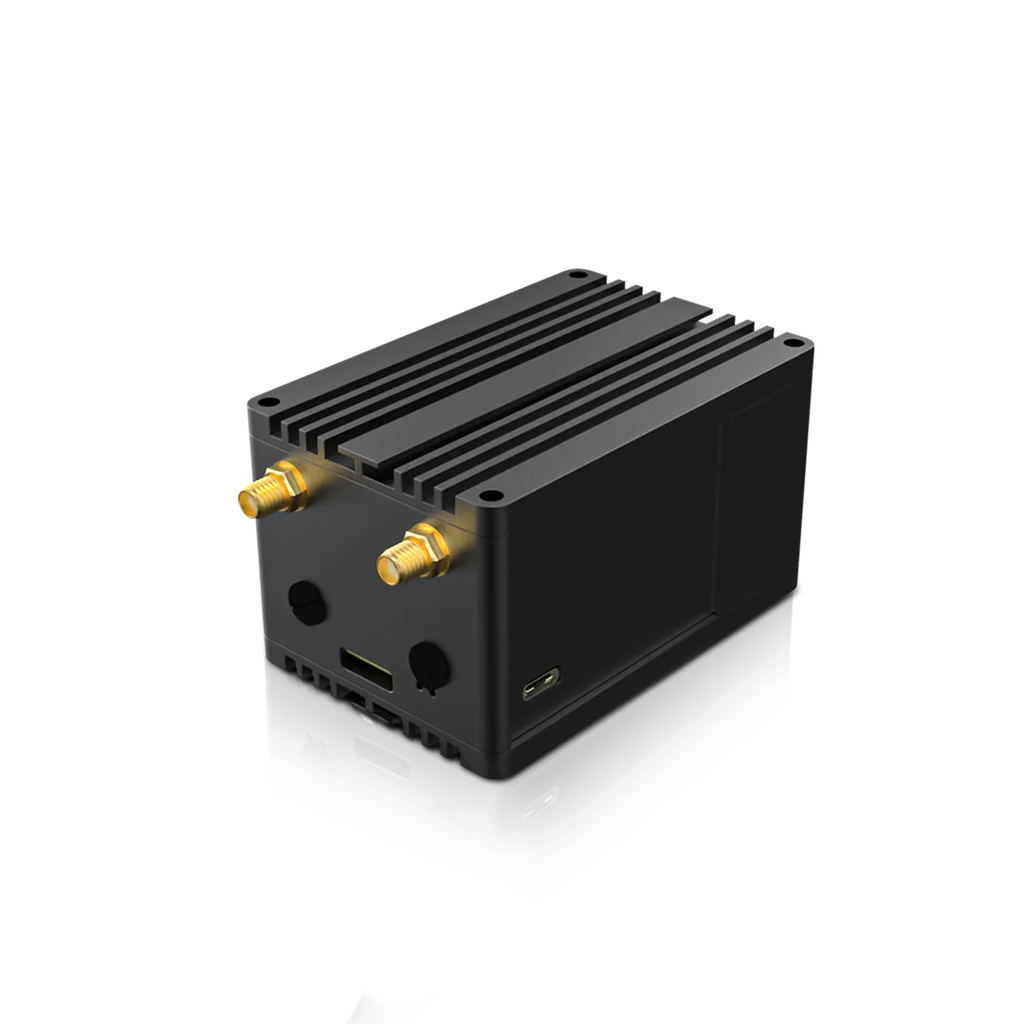

The RAK7248 WisGate Developer D4H RAK7248 is a Gateway for LoRAWAN that consists of Raspberry Pi4, RAK2287 Concentrator, and RAK2287 Pi HAT. RAK2287 includes a GPS module and a heat sink for better performance and thermal heat dissipation management, and its housing is built with an aluminum casing.

For the build-in RAK2287, it uses the&nbspSX1302 chip&nbspfrom Semtech which built-in LoRa&reg concentrator IP core is a powerful digital signal processing engine. It can receive up to&nbsp8 LoRa packets&nbspwith different spreading factors on different channels and available in multiple variants so it can be used for international standard bands. This unique capability allows implementing innovative network architectures advantageous over other short-range systems. RAK2287 Pi HAT is a converter board with Raspberry Pi form factor that enables the RAK2287 module to be mounted on the top of the Raspberry Pi. It integrates one (1) 40-pin female Pi HAT connector and one mPCIe connector to connect RAK2287 to the Raspberry Pi 4.

RAK7248 is ideal for prototyping, proof-of-concept demonstration, or evaluation. It includes a ready-to-use&nbspLoRaWAN Gateway&nbspOS that can be connected to a LoRaWAN server. Also, it is developer-friendly and simple even for no-so-tech users to set up a LoRaWAN system. It has to be the best value and function for connectivity to address a variety of applications like Smart Grid, Intelligent Farm, and other IoT enterprise applications.

&nbsp

Features

• Refreshed Case design with a new MCU&nbsp(Raspberry Pi4)
• Preassembled, fully functioning LPWAN&nbspdeveloper&nbspgateway
• Full LoRaWAN&reg Stack support&nbsp
• Supports for&nbsp8 channels
• Band support: 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
• TX power up to&nbsp27dBm
• RX Sensitivity:&nbsp-139dBm
• Integrates&nbspZOE-M8Q GPS&nbspmodule
• Quectel EG95&nbspLTE module
• PoE for the WisGate Developer D4HP(RAK7248P)

Package content

• 1unit RAK7248 LPWAN Developer Gateway
• 1pc LPWAN Antenna
• 1pc GPS Antenna
• 1pc Power Adaptor
• 1pc SD Card

Datasheet

RAK7248 WisGate Developer D4H Gateway Datasheet
