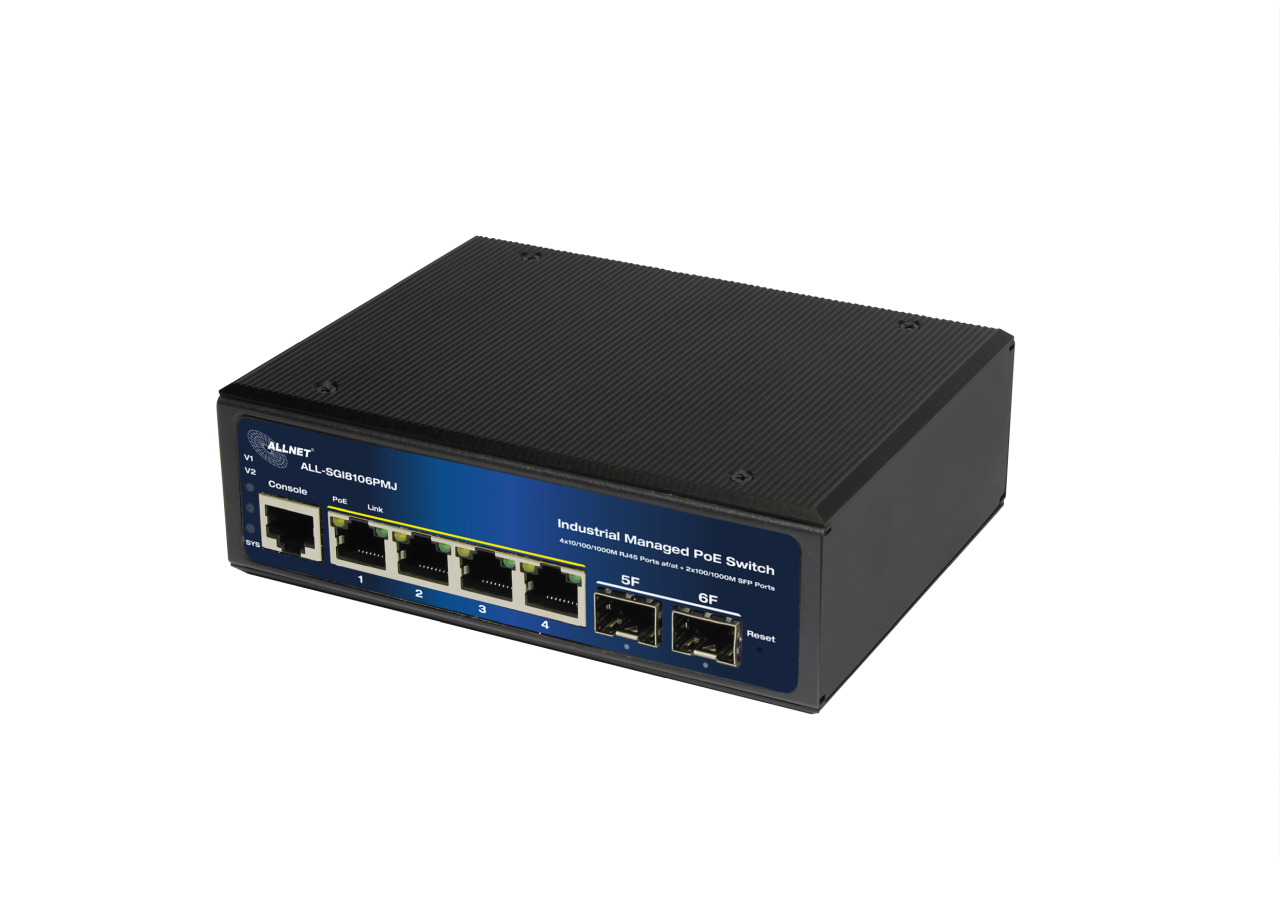

ALLNET Switch industrial full managed Layer2+ 6 Port GbE • PoE Budget 120W • 4x PoE+ • 2x SFP • Fanless • DIN • JSON • ALL-SGI8106PMJ

Highlights:

• 4 Gigabit ports with PoE AF-AT support up to 30 watts per port
• 2x SFP ports for fibre optic GBIC e.g. ALL4750/4751-INDU etc.
• PoE ports 1-4 max. PoE IEEE802.3at 30W
• Layer2+ features such as 802.1Q VLAN, port isolation IGMP, LLDP, PoE+ management, IP source guard, ACLs etc.
• Supports spanning tree STP (802.1D) and RSTP (802.1W) and MSTP (802.1s)
• Supports PoE management such as PoE scheduling, PoE PD-alive, port PoE priority, soft reboot PoE non-stop
• Supports G.8032 quick ring protocol. Self-healing <20ms
• Max. PoE budget = 120 watts
• Freeless metal housing with optimised heat dissipation
• Easy to use as a table-top device, wall-mounted or top-hat rail
• Extended temperature range from -40°C ~ +75°C

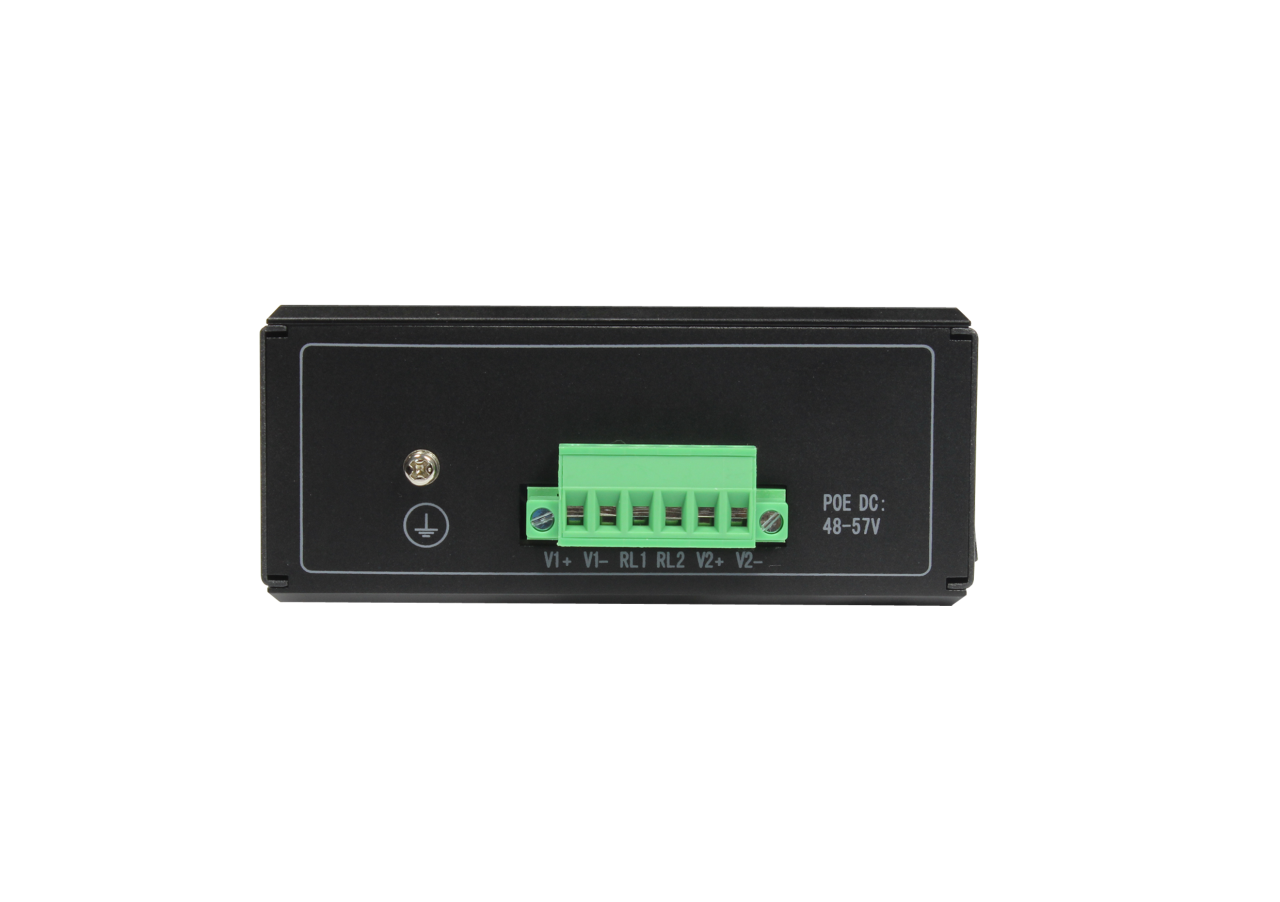

ALLNET ALL-SGI8106PMJ L2+ managed switch with 4 ports PoE is an industrial switch with 4-port Gigabit 802.3af/at PoE + 2-port Gigabit SFP optical port. It has a robust IP40 housing and a redundant power supply system. The industrial managed switch offers user-friendly but advanced IPv6/IPv4 management interfaces and a soft reboot PoE non-stop function and is the best investment for expanding industrial companies or upgrading their network infrastructure.

Intelligent PD alive check for frozen PDs

The ALL-SGI8106PMJ industrial PoE switch with 8 ports can be configured to monitor the status of the connected PDs in real time. As soon as the PD stops working and responding, the ALL-SGI8106PMJ restarts the power supply to the PoE port and gets the PD up and running again. In addition, reliability is significantly improved by the fact that the PoE port resets the PD power supply, reducing the administrative burden on the administrator.

PoE schedule function for energy saving

To protect the environment, the ALL-SGI8106PMJ Ethernet PoE switch can effectively control the power supply in addition to its ability to deliver high wattage. The PoE schedule function helps to enable or disable the PoE power supply for each PoE port during specific time intervals and is a powerful feature that helps SMEs or enterprises to save power and money.

Planned PD restart

The intelligent PoE switch ALL-SGI8106PMJ allows each of the connected PoE IP cameras or PoE wireless access points to be restarted at a specific time every week. This reduces the risk of the IP camera or AP crashing due to a buffer overflow.

Redundant ring with fast recovery for critical network applications

The ALL-SGI8106PMJ supports redundant ring technology and has a strong, fast self-recovery capability to prevent interruptions and external intrusions. It integrates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP) and a redundant power supply system into the customer's industrial automation network to improve system reliability and uptime in harsh factory environments. In a given simple ring network, the data link recovery time can be as low as 20 ms.

1588 time protocol for industrial computer networks

The ALL-SGI8106PMJ is ideal for telecommunications and carrier Ethernet applications and supports MEF service provisioning and timing-over-packet solutions for IEEE 1588 and synchronous Ethernet.

Strong Layer 2 functions

The ALL-SGI8106PMJ Layer 2 Ethernet switch can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), QoS, bandwidth control, IGMP snooping and MLD snooping. By aggregating the supporting ports, the ALL-SGI8106PMJ enables the operation of a high-speed trunk group that has multiple ports and also supports fail-over.

Efficient and versatile management methods

For efficient management, the ALL-SGI8106PMJ is equipped with console, web and SNMP management interfaces.

With the integrated web-based management interface, it offers a user-friendly, platform-independent management and configuration option.

For text-based management, access is possible via Telnet and the console port.

For standards-based monitoring and management software, it provides an SNMPv3 connection that encrypts the packet contents for secure remote management during each session.

Intelligent PoE switch with SFP DDM function

The ALL-SGI8106PMJ supports the SFP DDM (Digital Diagnostic Monitor) function, which allows the network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias voltage and transceiver supply voltage.

The technical features and stable housing make the switch the ideal solution for industrial applications. Supplied without power supply unit - please order separately!

Technical details:

Layer 2 functions

 Layer 3 functions
